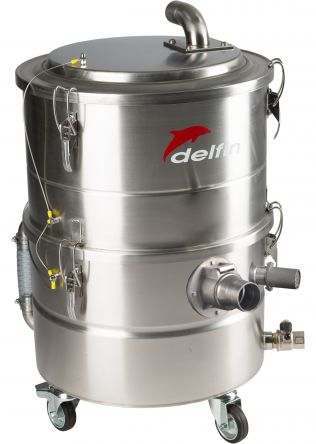

PRE-SEPARATOR FOR THE INERTIZATION OF HAZARDOUS EXPLOSIVE DUSTS

  • OEM Original Equipment Manufacturers
  • Explosive and conductive dusts

The pre-separator must be placed between the suction point and the industrial vacuum cleaner. The vacuumed material is immersed in an inert liquid system which instantly inert it. This way, both the operator and the vacuum cleaner are safeguarded.

The pre-separator for explosive dusts is also equipped with a sieve grid which captures the material and allows the operator to safely remove it from the inner part of the pre-separator.

ADVANTAGES

  • Stainless steel AISI304 collection tank
  • Earth grounding
  • ATEX-certified Z22
  • Inert liquid bath system for the safe discharge of explosive and conductive metal dust
  • Easily removable container for safe disposal of collected material
  • Prevents the build-up of the explosive atmosphere inside the vacuum
  • Inert container marked: Ex II 3D h IIIC T85°C X Dc

DATASHEET

Index UnitSEP.EX-001
MarkingEx II 3D Ex h IIIC T85°C Dc
Suction inletmm80in / 80out
1st stage filterPPL
2nd stage filter3x fiber filter
3rd stage filterStar
Surface and diameter12.000 - 500
Media, classPOLYESTER - ANT M
Fourth stage of filtrationHydro-oleophobic
Liquids capacityl27
Dust capacityl13
Dimensionscm50x60x112h
Weightkg36
Download SEP.EX-001Download technical sheet
