CV CABIN
CENTRAL VACUUM UNITS FOR CENTRALISED DUST EXTRACTION SYSTEMS

  • Steelworks and Foundries
  • Cement
  • Power plants

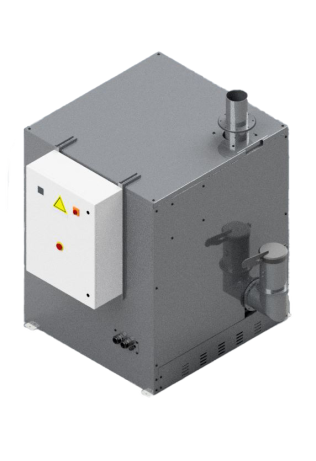

Fixed high performance suction unit with lobe pump and soundproof booth.
Delfin central vacuum units are characterised by their great power, quiet operation and reliability.
To be used exclusively in combination with a filter separator.
Complete with:
- pump / motor support base mounted on vibration dampers                          - belt drive with belt tensioner
- main exhaust silencer positioned under the pump
- relief valves
- class M polyester safety cartridge
- safety cartridge on the air cooling circuit (HV models only)
- hot air extraction fan
- large inspection and maintenance doors
- pockets and eyebolts for handling with a forklift

Both the central vacuum unit and the control panel can be personalised to meet specific needs with inverters or other specific customisations required by the customer.
Available in Atex-certified version.

ADVANTAGES

  • Complete steel construction
  • Sturdy vacuum cleaner for intensive use
  • Powerful lobe pump with electric motor
  • High performances and long-lasting equipment
  • Low noise level
  • Easy and safe to maintain
  • Control panel featuring: Zelio Schneider PLC, hour counter, pressure switch for filter condition, pump temperature sensor, motor PTC, level sensor and remote control.

DATASHEET

Index UnitCV 37 AFCV 45 AFCV 45 HVCV 22 AFCV 22 HVCV 30 AFCV 30 HVCV 37 HV
VoltageV - Hz400 - 50 3~400 - 50 3~400 - 50 3~400 - 50 3~400 - 50 3~400 - 50 3~
Power kW3745452222303037
Electrical protectionIP5555555555555555
Max water liftmmH₂O5.0005.0008.5005.0007.5005.0007.5007.200
Max air flowm³/h2.0002.3001.7001.3001.1001.7001.3001.500
Suction inletmm140140140140140140140140
Safety filter70.000 - M70.000 - M70.000 - M70.000 - M70.000 - M70.000 - M
Cooling filtercm² - Classe70.000 - M70.000 - M70.000 - M70.000 - M70.000 - M70.000 - M70.000 - M70.000 - M
Dimensionscm114x124x147h114x124x147h114x124x147h114x124x147h114x124x147h114x124x147h114x124x147h114x124x147h
Weightkg750950885590610710730800
Download CV 37 AFDownload technical sheet
Download CV 45 AFDownload technical sheet
Download CV 45 HVDownload technical sheet
Download CV 22 AFDownload technical sheet
Download CV 22 HVDownload technical sheet
Download CV 30 AFDownload technical sheet
Download CV 30 HVDownload technical sheet
Download CV 37 HVDownload technical sheet
