ZEFIRO CUBE 20 PNEUMATIC INDUSTRIAL VACUUM CLEANER FOR FINE DUST AND CHIPS WITH HEPA FILTER AND AUTOMATIC FILTER CLEANING

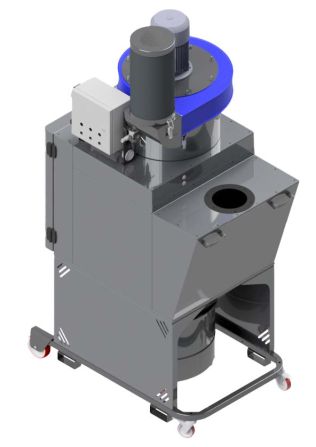

The ZEFIRO CUBE 20 PNEUMATIC is an industrial vacuum cleaner designed for applications involving fine dust suspended in the air and powders/chips with fixed onboard machine suction. Made of painted steel, it ensures high durability and easy maintenance thanks to its forklift-accessible design. It is equipped with two polyester cartridge filters class M and a HEPA filter for efficient filtration. The automatic filter cleaning system ensures consistent performance over time.
ADVANTAGES
- Complete steel construction
- High filtration efficiency
- High air flow value
- Conceived for the suction of fine dusts suspended in the air
- Optional articulated arm to suction in a restricted area
- Integrated automatic filter cleaning system
- Easily removable container for safe disposal of collected material
- Compliant with EN 17348: DRY TYPE
DATASHEET
Index | Unit | CUBE 20 K4 PN ACD | CUBE 20 PN ACD |
---|---|---|---|
Power | kW | 4 | 2,2 - 4 |
Electrical protection | IP | 65 | 65 |
Max water lift | mmH₂O | 370 | 210 - 370 |
Max air flow | m³/h | 3.500 | 2.500 - 3.500 |
Suction inlet | mm | 1 x 200 / 2 x 150 | 1 x 200 / 2 x 150 |
Noise level (EN ISO 3744) | dB(A) | 72 | 72 |
Filter Type | Cartridge | Cartridge | |
Cleaning system | Automatic | Automatic PN | |
Capacity | l | 90 | 90 |
Dimensions | cm | 135x88x255h | 135x88x255h |
Weight | kg | 250 | 250 |
![]() | ![]() |
