  2. ZFR EV AP 560

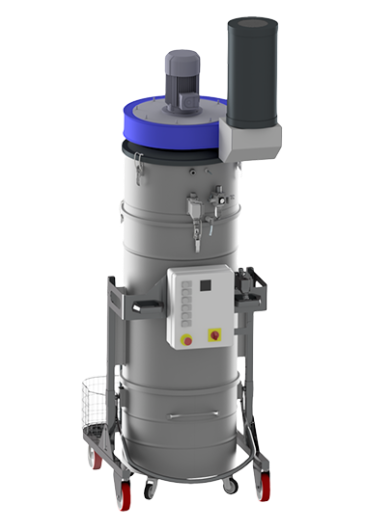

EV AP 560
INDUSTRIAL CHIPS AND DUST COLLECTOR

  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Wine

EV AP 560 has been designed to be directly integrated on production lines and to directly collect light chips and fine suspended dust. Ideal and safe for the recovery of very thin chips ( as those generated during the processing of aluminium and PVC), it guarantees top recovery efficiency.
A wide polyester filter and a 160 lt collection capacity make this dust collector the must-have to guarantee the top efficiency of continuous production lines or to remove large quantities of light chips while working.
The machine can be either supplied with a suction arm installed on it or to be installed on dedusting systems/production lines.
The ATEX-certified version is also available


CHIPS COLLECTOR IDEAL FOR ALUMINIUM OR PVC MITER SAWS
The recovery of aluminium or PVC dust particles on single or double-head miter saws, as well as on CNC machineries, is one of the typical applications of this industrial chips collector.
Thanks to EV AP 560, it will be possible to recover almost all the waste and chips from the source, and to significanlty cut machines maintenance and workplace cleaning time.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Extractable collection container with optional use of disposable bags
  • High air flow value
  • Full customization for specific needs
  • Conceived for the suction of fine dusts suspended in the air

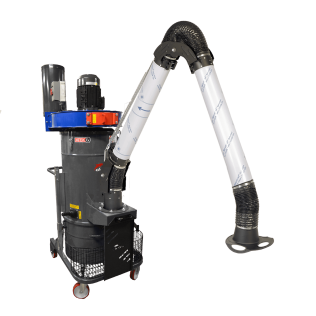

  • Optional articulated arm to suction in a restricted area
  • High airflow dust collector
  • Electrical panel with ΔΥ start included, 24 volt controls (K5 version)

DATASHEET

Index UnitZFR EV AP 560
VoltageV - Hz400 - 50 3~
Power kW1,1 - 5,5
Electrical protectionIP55
Max water liftmmH₂O160 - 470
Max air flowm³/h1.500 - 3.500
Suction inletmm200
Noise level (EN ISO 3744)dB(A)72 - 74
Filter TypeStar
Surface - Diametercm²-mm50.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - M
Cleaning systemManual
Capacityl100
Dimensionscm78x118x214h
Weightkg100 - 130
Download ZFR EV AP 560Download technical sheet

Watch the video

OTHER SETUPS

ZFR EV AP 560 INERT
INDUSTRIAL DUST COLLECTOR WITH DUST INERTING SYSTEM

  • Aluminum and PVC
  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Additive manufacturing

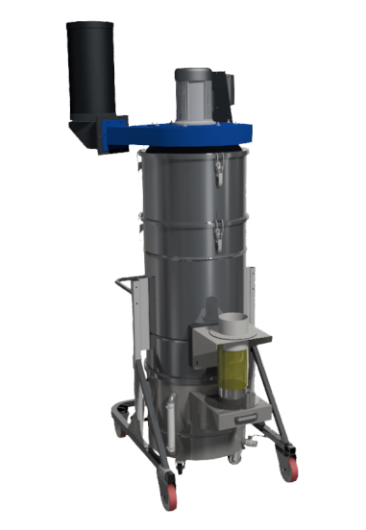

ZFR EV AP 560 inert industrial dust collector with dust inerting system

The ZFR EV AP 560 INERT industrial dust collector is Delfin's innovative solution for vacuuming airborne and suspended dust, which needs to be neutralized because conductive and explosive. The electric fan is able to vacuum very fine dust, thanks to the suction arm or through a direct connection to production machinery, collecting it directly into its container, equipped with an inert bath system. The three stages of filtration, by means of a droplet separator, a stainless steel demister, and a class M hydro-oleophobic polyester pocket filter, guarantee absolute safety when vacuuming in multiple types of explosive dust. Certified for ATEX ZONE 22 classified work zones.

ADVANTAGES

  • Largest surface filter in its category
  • High air flow value
  • Optional articulated arm to suction in a restricted area
  • Inert liquid bath system for the safe discharge of explosive and conductive metal dust
  • Side Channel Blower and Control Box Ex Dust Tight Certified
  • Neutralization system for reactive dusts with testing of performance EN17348
  • Compliant with EN 17348: WET TYPE

DATASHEET

Index UnitZFR EV AP 560 Z22
MarkingEx II 3D Ex tc IIIC T135°C X Dc
VoltageV - Hz400 - 50 3~
Power kW2,2
Electrical protectionIP65
Max water liftmmH₂O280
Max air flowm³/h1300
Suction inletmm125
Noise level (EN ISO 3744)dB(A)74
Atex zonesCE EX 3D
Filter TypeINOX - Demister
Secondary filterHEPA
Dimensionscm78x85x246h
Weightkg120
Download ZFR EV AP 560 Z22Download technical sheet

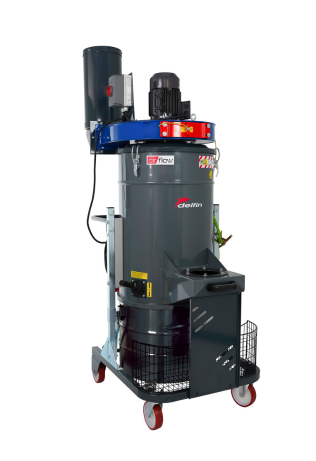

EV AP 560 PN
INDUSTRIAL CHIPS AND DUST COLLECTOR WITH AUTOMATIC FILTER CLEANING SYSTEM

  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Electronics
  • Wine
INDUSTRIAL CHIPS AND DUST COLLECTOR WITH AUTOMATIC FILTER CLEANING SYSTEM

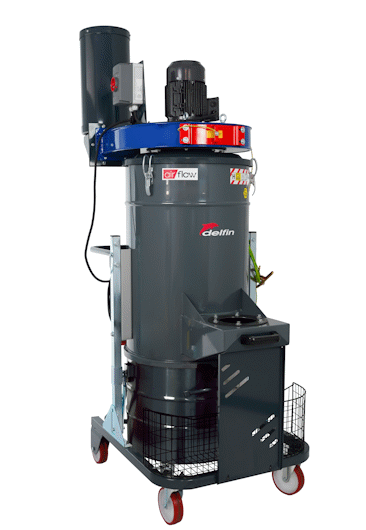

The EV AP 560 PN chips collector is equipped with an automatic filters cleaning system to guarantee a more efficient, safe and independent use of this collector on the machine

ADVANTAGES

  • Integrated filter cleaning system
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • High filtration efficiency
  • High air flow value
  • Possibility of integration on other vacuum cleaners
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area
  • High airflow dust collector

DATASHEET

Index UnitZFR EV AP 560 PN 2,2KwZFR EV AP 560 PN 4KwZFR EV AP 560 PN 1,1KwZFR EV AP 560 PN
VoltageV - Hz400 - 50 3~400 - 50400 - 50 3~400 - 50 3~
Power kW2,241,11,1 - 2,2
Electrical protectionIP55555565
Max water liftmmH₂O210200 / 300 / 350160160 - 210
Max air flowm³/h25002.700 / 1.800 / 1.10015001.500 - 2.500
Suction inletmm200200 / 150 / 120200200
Noise level (EN ISO 3744)dB(A)7474 7272 - 74
Filter TypeCartridgeCartridgeCartridgeCartridge
Surface - Diametercm²-mm106000 - 560106.000 - 560106000 - 560106.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT MPolyester - ANT MPolyester - ANT M
Cleaning systemAutomatic PNAutomatic PNAutomatic PNAutomatic PN
Capacityl100100100100
Dimensionscm78x85x250h78x85x250h78x85x250h78x118x250h
Weightkg140140125125 - 140
Discharge system
Download ZFR EV AP 560 PN 2,2KwDownload technical sheet
Download ZFR EV AP 560 PN 4KwDownload technical sheet
Download ZFR EV AP 560 PN 1,1KwDownload technical sheet
Download ZFR EV AP 560 PNDownload technical sheet
