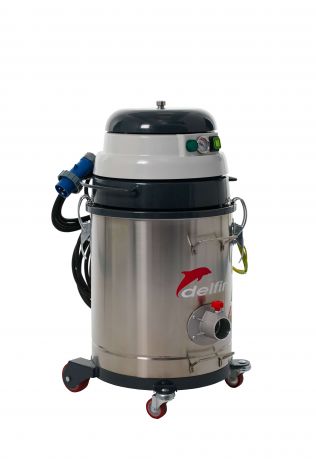

MTL 300
COMPACT SINGLE-PHASE INDUSTRIAL VACUUM CLEANER FOR ATEX ZONES 20, 21, 22 AND ACD
Compact, easy to handle and extremely versatile.
The new ATEX-certified vacuum cleaner model 300, available in the ACD version and with double ATEX certification, has been studied to vacuum in total safety combustible powders both in the ATEX zones and in the areas not classified at risk of explosion.
The new Brushless or Bypass single-phase head for ATEX-certified models is protected by the innovative Ex tb certified safety enclosure specifically designed to prevent the entry of combustible dust and prevent explosion risks. The stainless steel container AISI304, the antistatic polyester filter M and the absolute filter HEPA are standard to ensure the vacuuming operation in total safety. The option of using class M filter bags adds an additional level of protection for the operator and ease of recovered dust disposal.
OTHER SETUPS
MTL 302 ACD
ACD INDUSTRIAL VACUUM CLEANER FOR COMBUSTIBLE DUST IN NON-ATEX ZONE
The new MTL 302 ACD is ideal for the vacuuming of combustible dust in non-ATEX classified zones.The head is equipped with two single-phase bypass motors that guarantee high vacuuminf performance for non-continuous applications. The integrated AISI304 stainless steel container and the M antistatic polyester filter as standard guarantee a safe vacuuming operation. Class M antistatic disposable bags are also available for safe dust collection and disposal.
ADVANTAGES
- Compact and mobile
- Easy filter replacement
- Stainless steel AISI304 collection tank
- Earth grounding
- Easy to clean and to maintain
- Accessory kit included
DATASHEET
Index | Unit | MTL 302 ACD |
---|---|---|
Voltage | V - Hz | 230 - 50/60 1~ |
Power | kW | 2,3 |
Max water lift | mmH₂O | 2500 |
Max air flow | m³/h | 360 |
Suction inlet | mm | 50 |
Noise level (EN ISO 3744) | dB(A) | 74 |
Marking | II 1/-D Ex h IIIC T80°C (Internal) Da/- | |
Filter Type | Star | |
Surface - Diameter | cm²-mm | 4.000 - 360 |
Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm |
Secondary filter | HEPA | |
Transport capacity | kg/h | 40 |
Dimensions | cm | 44x42x78h |
Weight | kg | 25 |
Download technical sheet |
MTL 301 1/3D
ATEX-CERTIFIED INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 22 ZONE
Vacuuming combustible dust in medium explosion risk areas can become a simple maintenance task when choosing the MTL 301 1/3D compact vacuum cleaner. Zone 20 internal and zone 22 external certified, the MTL 301 1/3D vacuum cleaner ensures total safety during cleaning and maintenance.
The two filtration stages with an antistatic class M primary filter and a HEPA absolute filter ensure up to 99.995% filtration of the vacuumed particles.
Equipped with a bypass motor for non-continuous applications, the innovative Delfin head is equipped with a safety enclosure that protects the engine and prevents explosion risks.
ADVANTAGES
- Compact and mobile
- Easy filter replacement
- Stainless steel AISI304 collection tank
- Earth grounding
- Easy to clean and to maintain
- Accessory kit included
DATASHEET
Index | Unit | MTL 301 1/3D |
---|---|---|
Atex zones | ATEX Z20/22 | |
Voltage | V - Hz | 230 - 50/60 1~ |
Power | kW | 1,15 |
Max water lift | mmH₂O | 2500 |
Max air flow | m³/h | 180 |
Suction inlet | mm | 50 |
Noise level (EN ISO 3744) | dB(A) | 74 |
Marking | II 1/3D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Dc | |
Filter Type | Star | |
Surface - Diameter | cm²-mm | 4.000 - 360 |
Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
Transport capacity | kg/h | 40 |
Dimensions | cm | 44x42x84h |
Weight | kg | 26 |
Download technical sheet |
MTL 301 1/2D
ATEX-CERTIFIED INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 21 ZONE
Certified by third part to operate in areas at high risk of explosion. The MTL 301 1/3D vacuum cleaner is the compact and versatile solution to meet the needs of continuous vacuuming of combustible powders in complete safety. The two filtration stages, the primary class M antistatic filter and the absolute HEPA filter, allow filtration of up to 99.995% of the vacuumed particles.
The head equipped with a brushless motor ensures intensive and high performance use without the need for routine maintenance.
In addition, the new safety enclosure ensures complete protection, preventing the entry of explosive dust.
ADVANTAGES
- Compact and mobile
- Easy filter replacement
- Earth grounding
- Easy to clean and to maintain
- Accessory kit included
- Maintenance-free suction unit, 20,000 running hours guaranteed
DATASHEET
Index | Unit | MTL 301 1/2D |
---|---|---|
Atex zones | CE EX 1/2D | |
Voltage | V - Hz | 115/230 - 50/60 1~ |
Power | kW | 1,1 |
Max water lift | mmH₂O | 2.250 |
Max air flow | m³/h | 215 |
Suction inlet | mm | 50 |
Noise level (EN ISO 3744) | dB(A) | 74 |
Marking | II 1/2D Ex h tb IIIC T80°C (Int) / T95°C (ext) Da/Db | |
Filter Type | Star | |
Surface - Diameter | cm²-mm | 4.000 - 360 |
Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm |
Transport capacity | kg/h | 40 |
Dimensions | cm | 44x42x81h |
Weight | kg | 26 |
Download technical sheet |
