COMPACT TANK
HIGH POWER INDUSTRIAL VACUUM CLEANER WITH LOBE PUMP

  • Steelworks and Foundries
  • Cement
  • Power plants

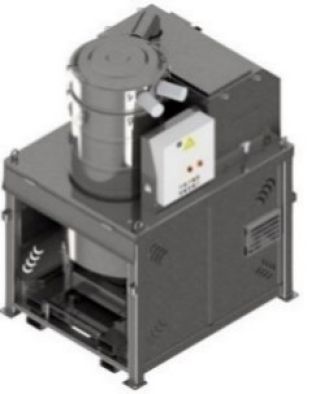

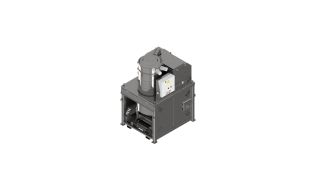

High performance mobile industrial vacuum cleaner with lobe pump mounted on a removable container.
Its exceptional suction performance makes it ideal for continuous, heavy duty use in working conditions typical of heavy industry where there are large quantities of material to be vacuumed,
The filtering system comprises a star filter and polyester safety cartridge to protect the pump.
Automatic filter cleaning is carried out by a Self Clean shaker filter and actuated by the on board compressor.

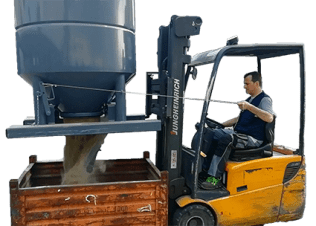

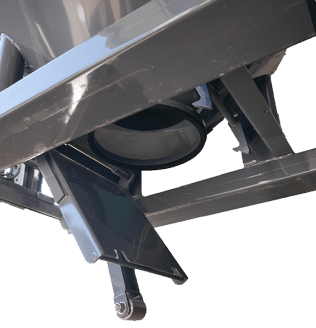

The collection container can be removed by pneumatically lifting the unit and emptied from the bottom via a large tilting door with lever. It closes automatically when the container is lowered to the ground.
Large inspection doors allow easy access to the motor compartment, while eyebolts make it easy to handle the unit by forklift.

ADVANTAGES

  • Integrated automatic filter cleaning system
  • Sturdy vacuum cleaner for intensive use
  • Powerful lobe pump with electric motor
  • High performances and long-lasting equipment
  • High efficiency filtration
  • Detachable container with fork lift intakes which make it is easy to handle
  • Discharge system by means of a valve
  • Great autonomy of the system

DATASHEET

Index UnitCOMPACT 30 TANKCOMPACT 37 TANKCOMPACT 22 TANK
Power kW303722
Electrical protectionIP555555
Max water liftmmH₂O5.0005.000 - 7.2005.000 - 7.500
Max air flowm³/h1.7001.500 - 2.0001.100 - 1.300
Suction inletmm127127127
Filter TypeStarStarStar
Cleaning systemAutomaticAutomaticAutomatic
Secondary filterCartridgeCartridgeCartridge
Transport capacitykg/h1.0001.0001.000
Dimensionscm196x163x272h194x173x311h196x163x272h
Weightkg1.9002.0501.800
Download COMPACT 30 TANKDownload technical sheet
Download COMPACT 37 TANKDownload technical sheet
Download COMPACT 22 TANKDownload technical sheet
