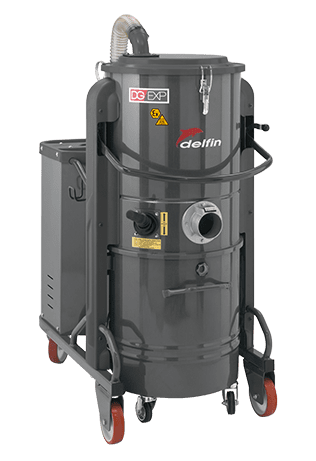

DG EXP ATEX
ATEX CERTIFICATED INDUSTRIAL VACUUM CLEANER ON WHEELS FOR DUST, SOLIDS AND LIQUIDS

  • Food Industry
  • Cement
  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Electronics
  • Wine
  • Rubber
  • Packaging
  • Coffee , tea, tobacco processing
  • Wood
  • Plastics
  • Finishing

DG EXP ATEX certified wheeled industrial vacuum cleaners for dust and solids extraction are the ideal solution for vacuuming solids, dusts and liquids in explosion hazard zones. Thanks to their powerful side channel blowers (which are also ATEX certified for zone 2, 20 and 21 ATEX vacuum cleaners), the DG EXP industrial vacuum can remove any type of material effortlessly and be used in both mobile and centralised systems. Integrated manual filter shaker, detachable container, large polyester filter and a magnetothermal switch are some of the special features that make it one of the best sellers from Delfin’s ATEX certified line. Also available in non-certified electric version.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Low noise level
  • Easy filter replacement
  • Reduced downtime of machine tools
  • Atex certified for Zone 22
  • Large surface antistatic filter
  • Conceived for fine and hazardous dust suction
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Stainless steel AISI304 collection tank
  • Earth grounding
  • High air flow value
  • Long lasting
  • Compliant with EN 17348: DRY TYPE
  • Side Channel Blower Ex Dust Tight Certified
  • Side Channel Blower and control switch box ATEX certified category 3GD for Z22 and Z2
  • Side Channel Blower and Control Box Ex Dust Tight Certified

DATASHEET

Index UnitDG 50 EXP Z22DG 70 EXP Z22DG 75 AF Z22DG 50 EXP Z2/22DG30 EXP EX 1/2D DG 75 AF PN Z22
Power kW45,57,5447,5
Electrical protectionIP656565656565
Max water liftmmH₂O3.200/2.6003.600/3.0003.200/2.7003.200/2.6002.4003.200/2.700
Max air flowm³/h420530700420420700
Suction inletmm808080808080
Noise level (EN ISO 3744)dB(A)7272767274
Use zone22 ATEX22 ATEXHazardous locations, 22 Dust, 2 Gas ATEX
MarkingII 3D Ex h tc IIIC T80°C (int) / T165°C (ext) DcII 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) DcII 3D Ex h IIIC T135°C Dc - II 3G Ex h IIB + H2 T4 GcII 1/2 D Ex h IIIC T160°C Da/DbII 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) Dc
Filter TypeStarStarStarStarStarCartridge
Cleaning systemManualManualManualManualManualAutomatic PN
Capacityl100100100100100100
Dimensionscm66x118x145h66x120x145h66x120x175h66x118x145h60x103x170h66x118x207h
Weightkg137150170140145170
Atex zones3D (20 int/22 ext)3D (20 int/22 ext)3D (20 int / 22 ext) 3G (2 int/ 2 ext)1/2D (20 int/21 ext)
VoltageV - Hz400-50 3~400-50 3~
Surface - Diametercm²-mm49.000 - 500
Material - EfficiencyPolyester - ANT MPolyester - ANT M
Secondary filterHEPA
Download DG 50 EXP Z22Download technical sheet
Download DG 70 EXP Z22Download technical sheet
Download DG 75 AF Z22Download technical sheet
Download DG 50 EXP Z2/22Download technical sheet
Download DG30 EXP EX 1/2DDownload technical sheet
Download DG 75 AF PN Z22Download technical sheet

OTHER SETUPS

DG EXP Z22 - II 3D
ZONE 22 ATEX CERTIFIED INDUSTRIAL VACUUM ON WHEELS

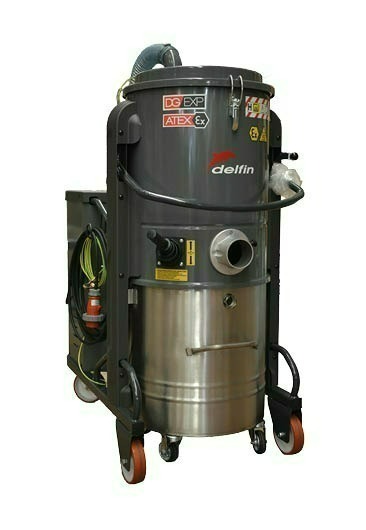

    ATEX ZONE 22 CERTIFIED INDUSTRIAL VACUUM CLEANER DG EXP Z22 - II 3D

    High surface area antistatic filtration with handy manual filter cleaning system built in, grounding and powerful side channel blower. All you need for safe vacuuming in environments with a rare risk of explosion.

    DG EXP Z20/22 - II 1/3D
    ATEX INTERNAL ZONE 20 AND EXTERNAL ZONE 22 CERTIFIED INDUSTRIAL VACUUM

    • Cement
    • Wine
    • Rubber
    • Wood

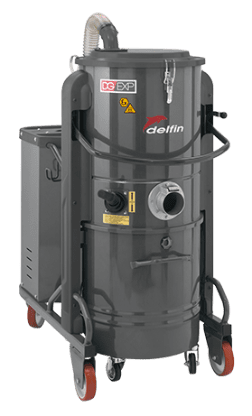

    atex internal zone 20 and external zone 22 certified industrial vacuum DG 50 EXP Z20/22 - II 1/3D

    Vacuuming potentially explosive dusts in zone 22 hazardous areas can create an even more perilous situation inside the industrial vacuum cleaner, where the extracted dust is moved and collected. Zone 20 certification of the interior of the vacuum chamber eliminates this risk.

    ADVANTAGES

    • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
    • Tangential suction inlet with integrated separation cyclone
    • Extractable collection container with optional use of disposable bags
    • Pressure relief valve for motor protection
    • Low noise level
    • Large surface antistatic filter
    • Conceived for fine and hazardous dust suction
    • Additional HEPA filter (99,995% on 0,18 micron) included
    • Stainless steel AISI304 collection tank
    • ATEX certified for Zone 20 inside the chamber and for Zone 22 outside the chamber
    • Absolute class H filter included

    DATASHEET

    Index UnitDG 70 EXP EX 1/3DDG30 EXP EX 1/3D
    Atex zonesATEX Z20/21 Z1-2ATEX Z20/22
    MarkingEx II 1/3D Ex h IIIC T160°C Da/DcEx II 1/3D Ex h IIIC T160°C Da/Dc
    VoltageV - Hz400 - 50 3~400 - 50 3~
    Power kW5,54
    Electrical protectionIP6565
    Max water liftmmH₂O2.3002.300
    Max air flowm³/h560420
    Suction inletmm8080
    Noise level (EN ISO 3744)dB(A)7272
    Filter TypeStarStar
    Surface - Diametercm²-mm30.000 - 50030.000 - 500
    Material - EfficiencyIEC 60335-2-69Polyester - ANT M
    Cleaning systemManualManual
    Secondary filterHEPASafety cartridge
    Collection tank
    Capacityl100
    Dimensionscm60x103x170h60x103x170h
    Weightkg145100
    Transport capacitykg/h100
    Download DG 70 EXP EX 1/3DDownload technical sheet
    Download DG30 EXP EX 1/3DDownload technical sheet

    DG EXP Z20/21 - II 1/2D
    ATEX INTERNAL ZONE 20 AND EXTERNAL ZONE 21 CERTIFIED INDUSTRIAL VACUUM

    • Cement
    • Wine
    • Rubber
    • Wood
    atex internal zone 20 and external zone 21 certified industrial vacuum DG 50 EXP Z20/21 - II 1/2D

    Vacuuming potentially explosive dusts in zone 21 hazardous areas can create an even more perilous situation inside the industrial vacuum cleaner, where the extracted dust is moved and collected. Zone 20 certification of the interior of the vacuum chamber, the AISI304 stainless steel container and additional H14 absolute filter eliminate this risk.

    ADVANTAGES

    • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
    • Extractable collection container with optional use of disposable bags
    • Pressure relief valve for motor protection
    • Low noise level
    • Large surface antistatic filter
    • Conceived for fine and hazardous dust suction
    • Additional HEPA filter (99,995% on 0,18 micron) included
    • Stainless steel AISI304 collection tank
    • Compliant with EN 17348: DRY TYPE
    • Side Channel Blower and control switch box ATEX certified category 3GD for Z22 and Z2

    DATASHEET

    Index UnitDG 70 EXP EX 1/2D
    VoltageV - Hz400 - 50 3~
    Power kW5,5
    Electrical protectionIP65
    Max water liftmmH₂O3.600
    Max air flowm³/h530
    Suction inletmm80
    Noise level (EN ISO 3744)dB(A)72
    MarkingII 3D Ex h IIIC T135°C Dc - II 3G Ex h IIB + H2 T4 Gc
    Atex zones3D (20 int / 22 ext) 3G (2 int/ 2 ext)
    Filter TypeStar
    Material - EfficiencyIEC 60335-2-69Ant Polyester - M PTFE
    Cleaning systemManual
    Secondary filterHEPA
    Capacityl100
    Dimensionscm66x118x145h
    Weightkg150
    Download DG 70 EXP EX 1/2DDownload technical sheet
