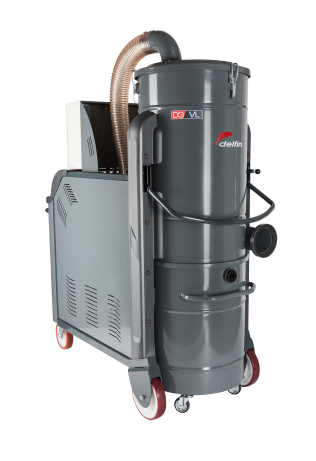

DG VL ATEX
INDUSTRIAL VACUUM CLEANER FOR HEAVY AND CONTINUOUS APPLICATIONS

  • Aviation
  • Food Industry
  • OEM Original Equipment Manufacturers
  • Cement
  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Building and construction

The industrial vacuum cleaners from the DG VL series are durable and powerful, perfect for sucking up large mixed quantities of solid and liquid material in continuous applications or installed on centralised suction systems in areas that require Atex certificated equipment. The powerful side channel blower generates high levels of vacuum, making them suitable for for sucking up any material. The large surface area antistatic polyester filter and practical built-in Selfclean system guarantee a long working life. The ease with which it can be picked up by a standard forklift means it is simple and safe to handle even when the container is full. Option of automatic pneumatic filter cleaning system available on all models.
DG VL vacuum cleaners are also available in a non certified electric version.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Integrated filter cleaning system
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Star-triangle switchboard
  • Easy filter replacement
  • Atex certified for Zone 22
  • ATEX certified for Zone 20 inside the chamber and for Zone 21 outside the chamber
  • Large surface antistatic filter
  • Conceived for fine and hazardous dust suction
  • Additional HEPA filter (99,995% on 0,18 micron) included

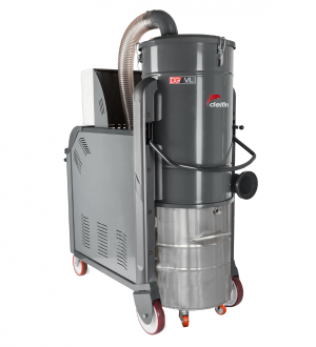

  • Stainless steel AISI304 collection tank
  • Suitable for high specific weight material

DATASHEET

Index UnitDG VL 150 SE Z22 DG VL 185 EX DG VL 125 EXDG VL 75 ATEX
VoltageV - Hz400 - 50 3~400 - 50 3~
Power kW17,317,318,5 - 38,2518,5 - 32,57,5 - 13,8
Electrical protectionIP6565656565
Max water liftmmH₂O60006.0002.6003.1002.700
Max air flowm³/h7207201.3501.100700
Suction inletmm120120120120120
Noise level (EN ISO 3744)dB(A)7878787872
Filter TypeStarStarStarStarStar
Surface - Diametercm²-mm70.000-56070.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT M
Air load on filter m³/m²/h104
Cleaning systemSELF CLEAN SELF CLEAN SELF CLEAN SELF CLEAN SELF CLEAN
Capacityl160
Dimensionscm170x74x200h170x74x200h180x77x200h180x77x200h
Weightkg440440200200
Transport capacitykg/h160
MarkingEx II 1/2D Ex h lllC T160°C Da/Db
Collection tank
