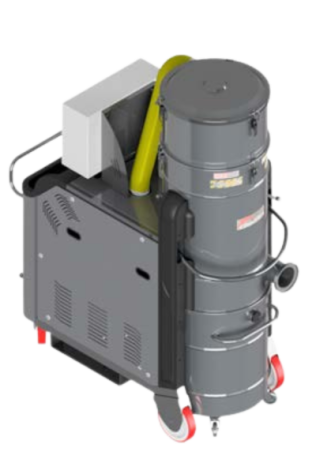

DG VL PN
INDUSTRIAL VACUUMS FOR VACUUMING OF DUST AND COMPACT SOLIDS

  • Cement
  • Ceramics and pottery industries
  • Building and construction
  • Wood

DG VL PN industrial vacuum cleaners are ideal for extracting large quantities of dry dust that could clog the filter and reduce suction power to zero (suitable for dust from building sites, construction, cement works, floor and surface treatment). DG VL PN machines are equipped with large-surface cartridge filters, which are automatically cleaned cyclically by a counter-current filter cleaning system, leaving the operator free to vacuum continuously until the tank is full.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • Low noise level
  • Star-triangle switchboard
  • Reduced downtime of machine tools
  • Suitable for high specific weight material
  • Simultaneous suction of solid, dust and liquid material
  • Fork lift intakes included
  • Filter-shaking cleaning system with compressor for Self Clean
  • Easily removable container for safe disposal of collected material

DATASHEET

Index UnitDG VL 75DG VL 125DG VL 185DG VL 150 SE
VoltageV - Hz400 - 50 3~400-50 3~400 - 50 3~400 - 50 3~
Power kW7,512,5 - 2818,5 - 3715 - 31,7
Electrical protectionIP55656565
Max water liftmmH₂O4.5004.0004.0006.000
Max air flowm³/h7501.1001.350720
Suction inletmm120120120120
Noise level (EN ISO 3744)dB(A)72788278
Filter TypeCartridgeStarStarStar
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT MPolyester - ANT MPolyester - ANT M
Air load on filter m³/m²/h71157192104
Cleaning systemSELF CLEAN SELF CLEAN SELF CLEAN SELF CLEAN
Capacityl160160160160
Dimensionscm170x74x213h170x74x200h170x74x200h170x74x200h
Weightkg360430450440
Surface - Diametercm²-mm70.000 - 56070.000 - 56070.000 - 560
Download DG VL 75Download technical sheet
Download DG VL 125Download technical sheet
Download DG VL 185Download technical sheet
Download DG VL 150 SEDownload technical sheet
