DG 50 IECEX
INDUSTRIAL VACUUM CLEANER CERTIFIED IECEX

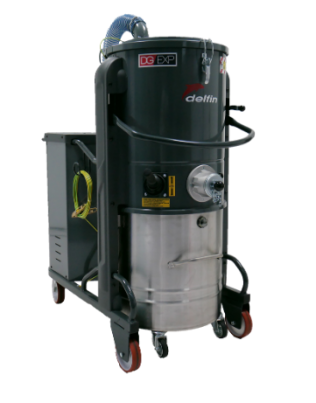

The DG 50IECEX wheeled industrial vacuum cleaner is designed for dust extraction in potentially explosive atmospheres. Thanks to its powerful side channel turbine (4kW of power), it can effortlessly remove any type of material with extreme ease and safety.

Integrated manual filter shaker, stainless steel release container, large antistatic polyester filter and absolute filter make this vacuum cleaner the ideal machine for vacuuming large quantities of solids and dust.

Thanks to the prestigious IECEx certification on the entire machine and components such as the electric motor, electrical box and cable glands ensures safe use in potentially explosive areas.

ADVANTAGES

Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
Largest surface filter in its category
Pressure relief valve for motor protection
Compact and mobile
Long lasting
Very suitable for the suction of large quantities of material
Easily removable container for safe disposal of collected material
High efficiency filtration
Low noise level
Suitable for continuous use 24/7
IECEX Certified

DATASHEET

Index	Unit	DG 50 IECEX	DG 50 EXP IECEX
Voltage	V - Hz	400 - 50
Power	kW	4	4
Max water lift	mmH₂O	2.300	2.300
Max air flow	m³/h	320	320
Suction inlet	mm	80	80
Noise level (EN ISO 3744)	dB(A)	72	72
Filter Type		Star	Star
Surface - Diameter	cm²-mm	30.000 - 500
Material - Efficiency	IEC 60335-2-69	Polyester - ANT M
Air load on filter	m³/m²/h	140
Cleaning system		Manual	Manual
Discharge system
Capacity	l	100	100
Dimensions	cm	60X103X170	60x103x170h
Weight	kg	145	145
Electrical protection	IP		65
Marking			Ex h IIIC T135°C Da/Db
Atex zones			1/2D
Use zone			Hazardous locations
