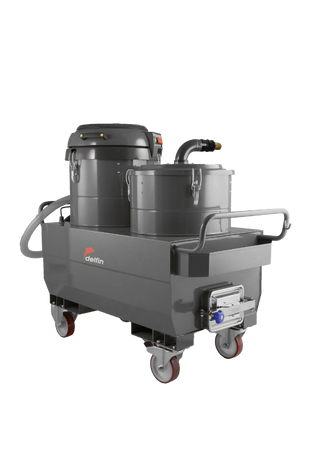

TC220 MPI
INDUSTRIAL VACUUM FOR CNC MACHINE TOOL MAINTENANCE
The TC220 MPI vacuum cleaner is a powerful vacuum cleaner equipped with 3 independent single-phase motors, designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be easily suctioned, separating off any metal chips or swarfs and allowing the vacuumed liquid to be reused, all at the same time! This means significant savings in terms of money and time spent servicing machinery. 220 litre liquid capacity, 40 litre sieve grid basket for metal chips and simultaneous suction, filtration and discharge of liquids!
An inspection door allows to easily clean the inner part of the vacuum.
ADVANTAGES
- Floating device to stop the suction when container is full
- Reduced downtime of machine tools
- Submerged pump for the discharge of the sucked liquid
- Grid for chips vacuuming
- Simultaneous operation of liquids vacuuming and discharge
- Possibility of recycling oils and emulsions
- Reduction of disposal costs due to exhausted oils
- Reduction of machineries cleaning times
DATASHEET
| Index | Unit | TC 220 MPI |
|---|---|---|
| Voltage | V - Hz | 230 - 50 1~ |
| Power | kW | 3,45 |
| Max water lift | mmH₂O | 2500 |
| Max air flow | m³/h | 540 |
| Noise level (EN ISO 3744) | dB(A) | 76 |
| Filter Type | 3D SuperWeb | |
| Media - Filtration | Polypropylene - 20μm | |
| Discharge system | ||
| Liquids capacity | l | 220 |
| Solids capacity | l | 40 |
| Discharge speed | l / min | 160 |
| Floating device | ||
| Dimensions | cm | 145x72x147h |
| Weight | kg | 165 |
 Download technical sheet |
OTHER SETUPS

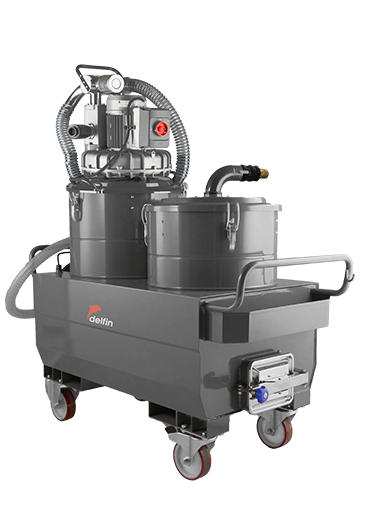

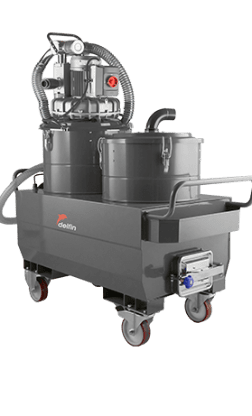

TC220 IF
THREE-PHASE INDUSTRIAL VACUUM FOR CNC MACHINE TOOL MAINTENANCE
Equips a powerful side channel blower with flow inversion that allows fast discharge of the liquids. Can easily withstand continuous duty, without maintenance need.
ADVANTAGES
- Floating device to stop the suction when container is full
- Reduced downtime of machine tools
- Grid for chips vacuuming
- Reduction of disposal costs due to exhausted oils
- Reduction of machineries cleaning times
- A turnable suction inlet simplifies vacuuming operations
- A window allows to inspect and access the collection tank
DATASHEET
| Index | Unit | TC 220 IF | TC 220 TP |
|---|---|---|---|
| Voltage | V - Hz | 400 - 50 3~ | 400 - 50 3~ |
| Power | kW | 3 | 3 |
| Max water lift | mmH₂O | 3000/2700 | 3.000 / 2.700 |
| Max air flow | m³/h | 318 | 318 |
| Noise level (EN ISO 3744) | dB(A) | 78 | 78 |
| Filter Type | 3D SuperWeb | 3D SuperWeb | |
| Media - Filtration | Polypropylene - 20μm | Polypropylene - 20μm | |
| Discharge system | Immersion pump | ||
| Liquids capacity | l | 220 | 220 |
| Solids capacity | l | 40 | 40 |
| Discharge speed | l / min | 200 | 200 |
| Floating device | Yes | ||
| Dimensions | cm | 145x72x175h | 145x72x175h |
| Weight | kg | 185 | 185 |
| Download technical sheet | Download technical sheet |
