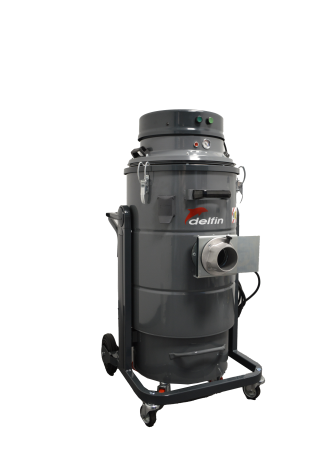

DM3 CLEAR AUT
INDUSTRIAL VACUUM CLEANER WITH CONTINUOUS AND AUTOMATIC FILTERS CLEANING
The DM3 CLEAR-AUT industrial vacuum cleaner is equipped with an exclusive system that allows constant, automatic cleaning of the filters inside it, guaranteeing the highest levels of suction efficiency even during long cleaning cycles.
Two elliptical filter cartridges with a large surface area block even the finest vacuumed dust, preventing it from clogging the motors and being released back into the working environment. In addition, the additional E10 filter, which is provided as standard, guarantees almost absolute protection from dust that may affect the motor.
The filter cleaning system is based on a continuous vibration exerted directly on the two filtering cartridges, which gives the operator total working autonomy, as he no longer has to interrupt his work to carry out a manual cleaning cycle.
The CLEAR-AUT system guarantees constant suction efficiency, thanks to the possibility of carrying out dedicated filter cleaning cycles, either through the manual Dustop system or through a more concentrated and effective vibration on the filters. In this second case, when the operator wishes to carry out extra cleaning, he can press the appropriate button: the motors will stop working for 12 seconds, allowing vibration on the filters in the absence of suction.
The suction unit is equipped with three single-phase bypass motors that start sequentially when switched on, avoiding current peaks.
The suctioned dust is collected in a 45-liter capacity release container. Also available with Endless Bag.
OTHER SETUPS

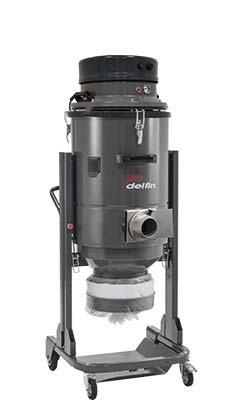

DM3 CLEAR-AUT ENDLESS BAG
SINGLE-PHASE VACUUM CLEANER WITH SAFE BAGGING AND CONTINUOUS FILTERS CLEANING
The DM3 CLEAR-AUT with Endless Bag is the ideal vacuum cleaner for direct suction of machinery and tools that generate extremely fine dust during processing, to prevent it from being breathed in by the operator and dispersing into the environment.
The filtering chamber contains two cartridge filters of 15,000 cm2 each, capable of blocking even the finest and most contaminating dust. The filter cleaning system allows constant cleaning by means of a continuous vibration that prevents dust from sticking to the filter.
The CLEAR-AUT system guarantees constant suction efficiency, thanks to the possibility of carrying out dedicated filter cleaning cycles, either through the manual Dustop system or through a more concentrated and effective vibration on the filters. In this second case, when the operator wishes to carry out extra cleaning, he can press the appropriate button: the motors will stop working for 12 seconds, allowing vibration on the filters in the absence of suction.
The suction unit is equipped with three bypass motors that start sequentially to avoid current peaks.
The solid steel structure is equipped with a spring system that allows the height to be reduced to facilitate transport even on lower vehicles.
ADVANTAGES
- Largest surface filter in its category
- Integrated filter cleaning system
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Three powerful by pass motors with independent cooling
- Compact and mobile
- Integrated automatic filter cleaning system
- Adjustable height to facilitate transport on vehicles
- Sliding dumper for DUSTOP system included
- Endless Bag
DATASHEET
Index | Unit | DM3 EL LP CLEAR AUT | DM3 EL CLEAR AUT |
---|---|---|---|
Voltage | V - Hz | 65x70x166h | 230 - 50 1~ |
Power | kW | 3,45 | 3,45 |
Max water lift | mmH₂O | 2.500 | 2.500 |
Max air flow | m³/h | 540 | 540 |
Suction inlet | mm | 80 | 80 |
Noise level (EN ISO 3744) | dB(A) | 76 | 76 |
Filter Type | Cartridge | Cartridge | |
Surface - Diameter | cm²-mm | 30.000 - 360 | 30.000 - 360 |
Material - Efficiency | IEC 60335-2-69 | ||
Cleaning system | Automatic CLEAR AUT + DUSTOP | Automatic CLEAR AUT + DUSTOP | |
Discharge system | |||
Weight | kg | 80 | 83 |
Dimensions | cm | 65x70x166h | 69x63x126h |
Air load on filter | m³/m²/h | 180 | |
Transport capacity | kg/h | 45 | |
Download technical sheet | Download technical sheet |
