1. Industrial vacuum cleaners
  2. PHARMA 20.18 ATEX

PHARMA 20.18 Z22
SAFE AND POWERFUL EXTRACTION FOR EXPLOSION HAZARD AREAS

  • OEM Original Equipment Manufacturers
  • Chemical-pharmaceutical
  • Coffee , tea, tobacco processing

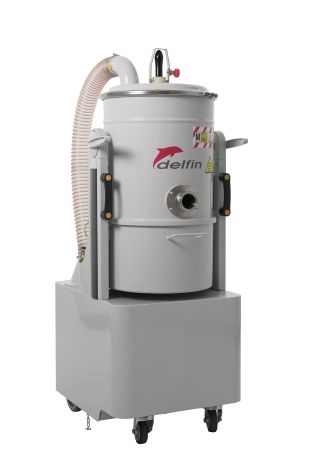

The MTL 20.18 is a compact and silent industrial vacuum designed for extracting combustible dust in hazardous environments. Equipped with a H14 absolute filter and an ergonomic cleaning system, it ensures optimal filtration. Its steel construction with a quick-release container and Ex tb certified blower make it ideal for applications in ATEX Zone 22 environments. Safe, powerful, and versatile, it is perfect for onboard machine cleaning and the removal of industrial dust.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Low noise level
  • Compact, silent, and flexible vacuum cleaner, ideal for suction on-board of machinery
  • Star primary filter with integrated ergonomic cleaning system
  • Optional H14 absolute filter for air blowing safety
  • Compliant with EN 17348: DRY TYPE
  • Side Channel Blower and Control Box Ex Dust Tight Certified

DATASHEET

Index UnitPHARMA 20.18 Z22
Power kW2,2
Max water liftmmH₂O3.000
Max air flowm³/h270
Suction inletmmClamp ø50 AISI304
Noise level (EN ISO 3744)dB(A)70
Use zone22 ATEX
MarkingII 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) Dc
Atex zones3D (20 int/22 ext)
Filter TypeStar
Surface - Diametercm²-mm12.000 - 360
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Cleaning systemManual
Capacityl22
Dimensionscm70x51x129h
Weightkg75
Download PHARMA 20.18 Z22Download technical sheet

Ask for a free quotation
