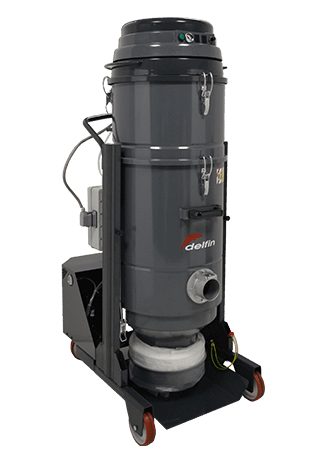

XTRACTOR 2BL
INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION IN CONTINUOUS DUTY
The industrial vacuum cleaners of the Xtractor range are ideal for the suction of fine dust which, under normal working conditions, would obstruct the filter, reducing suction performance and endangering the health of operators. The Xtractor 2BL cleaner represents the new vacuum frontier, thanks to the exclusive head with 2 brushless motors that allow extreme handling, extremely high performance and exceptional durability.
The motors are protected by high-surface and efficient filter cartridges (class M with PTFE coating, optional additional HEPA filter) which are automatically cleaned and timed by a counter-current filter cleaning system, which allows the operator to vacuun in one continuous cycle. The Endless Bag safe collection system allows you to adjust the weight and length of the bag according to your needs, totally preventing contact between the fine powder and the operator.
An easy system of springs allows to reduce the height of the aspirator to facilitate the transport on standard vehicles of companies that deal with remediation or surface treatment.
ADVANTAGES
- Integrated automatic filter cleaning system
- Keeps the workplace clean
- Easy to handle
- Standard or Endless Bag interchangeable collection unit
- Easy to connect to floor preparation machinery
- Suitable for continuous use 24/7
- System of springs allows to reduce the height of the vacuum of 25cm
- Endless Bag
DATASHEET
Index | Unit | XTRACTOR 2BL |
---|---|---|
Voltage | V - Hz | 230 - 50 3~ |
Power | kW | 2.2 |
Max water lift | mmH₂O | 2250 |
Max air flow | m³/h | 430 |
Suction inlet | mm | 80 |
Noise level (EN ISO 3744) | dB(A) | 75 |
Filter Type | Cartridge | |
Surface - Diameter | cm²-mm | 57.000 |
Material - Efficiency | IEC 60335-2-69 | Polyester - M PTFE |
Cleaning system | Automatic PN | |
Capacity | lt | Longopac 20mt |
Dimensions | cm | 65x91x198/172h |
Weight | kg | 145 |
Download technical sheet |
OTHER SETUPS
XTRACTOR 3BP
INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION
The 3 powerful single-phase motors guarantee high suction performance, even in non-continuous or burdensome applications. Filtering and cleaning of automatic filters, for an incomparable service
ADVANTAGES
- Integrated automatic filter cleaning system
- Keeps the workplace clean
- Easy to handle
- Easy to connect to floor preparation machinery
- Suitable for continuous use 24/7
- System of springs allows to reduce the height of the vacuum of 25cm
- Endless Bag
- Maintenance free integrated compressor
DATASHEET
Index | Unit | XTRACTOR 3BP |
---|---|---|
Voltage | V - Hz | 230 - 50 |
Power | kW | 3.45 |
Max water lift | mmH₂O | 2500 |
Max air flow | m³/h | 540 |
Suction inlet | mm | 80 |
Noise level (EN ISO 3744) | dB(A) | 70 |
Filter Type | Cartridge | |
Surface - Diameter | cm²-mm | 57.000 |
Material - Efficiency | IEC 60335-2-69 | Polyester - M PTFE |
Cleaning system | Automatic PN | |
Capacity | l | Longopac 20mt |
Dimensions | cm | 65x91x190/164h |
Weight | kg | 140 |
Download technical sheet |
The 3 powerful single-phase motors guarantee high suction performance, even in non-continuous or burdensome applications. Filtering and cleaning of automatic filters, for an incomparable service
ADVANTAGES
- Integrated automatic filter cleaning system
- Keeps the workplace clean
- Easy to handle
- Easy to connect to floor preparation machinery
- Maintenance free integrated compressor
DATASHEET
Index | Unit | DM3PN 3BP |
---|---|---|
Voltage | V - Hz | 230 - 50 1~ |
Power | kW | 3,45 |
Max water lift | mmH₂O | 2500 |
Max air flow | m³/h | 540 |
Suction inlet | mm | 80 |
Noise level (EN ISO 3744) | dB(A) | 70 |
Filter Type | Cartridge | |
Surface - Diameter | cm²-mm | 57000 |
Material - Efficiency | IEC 60335-2-69 | Polyester - M PTFE |
Air load on filter | m³/m²/h | 95 |
Cleaning system | Automatic PN | |
Discharge system | ||
Capacity | l | 60 |
Dimensions | cm | 67x93x168 |
Weight | kg | 142 |
Download technical sheet |
Ask for a free quotation
