Centralized vacuum systems; practical, modular, and efficient.

04/03/2021 CVS

The latest innovation of vacuum systems.

The centralized vacuum system, commonly known as CVS, is the perfect tool to:

  • Increase production efficiency
  • Remove materials over long distances
  • Vacuuming in several places simultaneously
  • A very large production area
  • On several levels simultaneously



Why you should choose a CVS

The installation of centralized systems requires careful and specific study and design to ensure maximum benefits for the companies that use them:

  • Saving time dedicated to the cleaning of machinery and work environments
  • Working on a continuous cycle improves production efficiency and avoids machine downtime.
  • Increased security thanks to Atex certifications

Centralized vacuum systems are practical and versatile tools that increase the working autonomy of the production process, making it possible for an entire department to be cleaned by a single operator, thus saving dedicated resources.

What does a centralized vacuum system consist of?

Designed and dimensioned according to the specific characteristics of each single production area, a centralized plant is composed of:

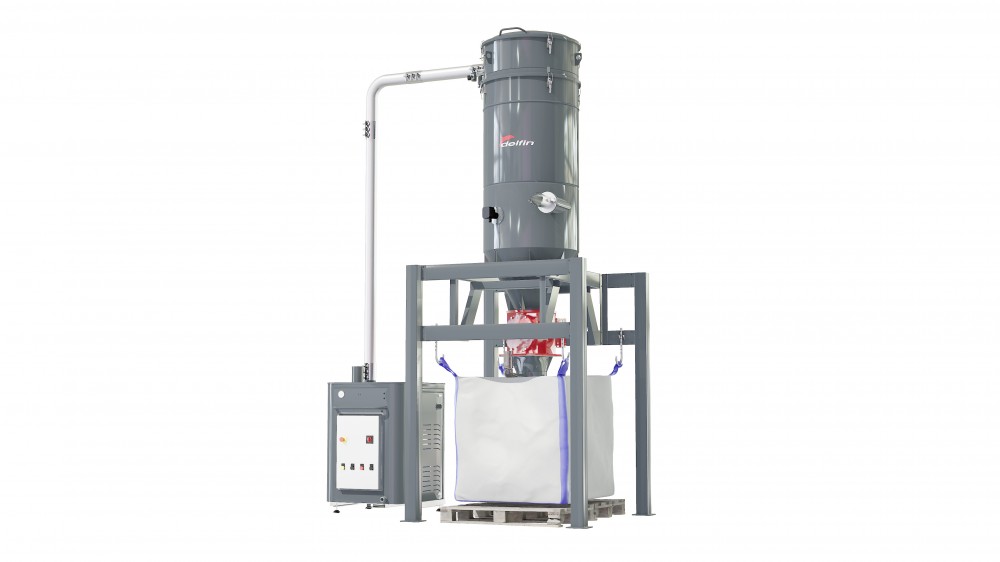

  • A central vacuum unit, consisting of a side-channel vacuum unit and an electrical panel with a control board. The material that will be transported will determine the correct functioning of the system, the sizing of the airflow rate, the pressure losses, and the distances to be covered by the pipes. It is fundamental to guarantee the speed of the air in the pipes (m/s), a necessary parameter for the correct flow of the material.

 A high efficiency filtering unit to protect the vacuum cleaner system. During the production processes, granules and dust in suspension are generated, often also polluting such as fumes, mists, and odors. These elements of different natures require filter units sized according to their own specifications. Depending on the application you will choose to install:

  1.  Pocket filter with timed automatic cleaning
  2.  Cartridge filter with automatic alternating air counter-current cleaning.

With antistatic polyester filter media class M, or in polyester with PTFE membrane in case of presence of packaging materials.


  • Pipes connecting the collection points to the filtering unit. The correct sizing of the entire connection piping is of fundamental importance to minimize pressure drops. All components are available in galvanized steel and stainless steel.

  • Discharge system with a collection unit for the extracted material. Depending on the customer's requirements, a continuous or discontinuous discharge system will be installed, with the possibility of using removable containers, Endless Bag systems, rolls for continuous discharge, BIG BAG discharge, etc.



    Which companies should use a centralized system?

    A centralized system is suitable for companies that want to increase the efficiency of their machinery and have a clean production plant. The systems can be used in all industrial fields responding to specific customer requirements with a focus on companies operating in the following areas:

  •  Food
  •  Pharmaceutical
  •  Chemical
  •  Mechanical and heavy industry


    These companies have a large presence of dust or residues during the processing cycles. The centralized systems are also available with certification for ATEX zones.

Plant sizing

To ensure the correct sizing of a centralized system it is necessary to provide as much information as possible. This will allow the technical department to carry out a study and an effective technical proposal that meets the needs expressed by the customer. Some of the necessary data are:

  • Technical description of the product to be transported, indicating density, smoothness, grain size, whether it is conductive or not, etc.

  •  Information about the central vacuum cleaner, the type of motor (electric or compressed air) specifying the volt.

  •  Information about the storage container for the aspirated material choosing between big bag, container, or other types indicating the required capacity in liters or gallons.

  •  The type of discharge desired, continuous or non-continuous, and whether manual or automatic discharge is required.



Planning and support

For 25 years Delfin has been developing, building, and installing industrial dust and material extraction systems for all types of industry.
By choosing a Delfin centralized system you will have a dedicated team that will follow you during all phases of the process, from analysis to design, installation, and assistance, guaranteeing maximum customization of the system
