DISCOVER THE EXCLUSIVE FEATURES OF THE NEW ATEX MODELS

08/05/2024 ATEX EX,AIREX,ACD

Vacuum solutions for the pharmaceutical industry

For over thirty years, the Delfin Group has been dedicating each day to developing cutting-edge solutions for the safe removal, extraction, and control of combustible dusts and materials across various industrial sectors, distinguishing itself today as the global specialist in industrial dust management.
Discover the latest innovations implemented in our new ATEX certified machines and download the new brochure dedicated to combustible dust.

vacuuming solutions for logistics and storage areas

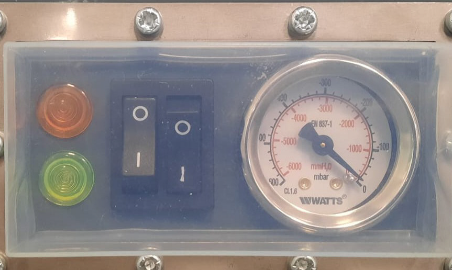

DUST SEALED COVERING UV AND THERMAL ENDURANCE RESISTANT

All electrical controls and warning indicators are protected by a transparent covering tested according to the international norms EN IEC 60079-0:2018 clause 26.10, 26.8 and 26.9.

FILTER CLOGGING LIGHT AND VACUUM GAUGE INDICATOR

To ensure constant filtration efficiency, a warning light shows when the filter is getting clogged or if the air velocity slows down (below 20 m/sec.) due to other obstructions in the suction hose or machine body.
The vacuum gauge allows the user to monitor the clogging of the filter and plan maintenance interventions accordingly.A second light shows when the machine is connected to a power supply.

Labcontrol vacuum cleaners for clean rooms

ANTISTATIC RUBBER SPARK TRAP DEFLECTOR

Delfin designed a series of deflectors or protection systems to avoid sparks generation during collection in the filtration chamber or in the wet collector systems for high sensitivity of self-heating dust.

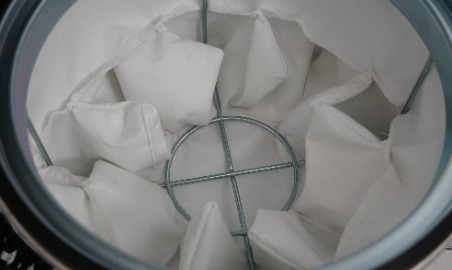

HIGH PERFORMANCE STATIC DISSIPATIVE MAIN FILTER

Burst strength test and collapsing test were performed to the main filter to ensure long lasting resistance in heavy duty applications according to the new 17348 standard, as primary level of filtration. Resistances below 10^8 Ω according EN 17348.

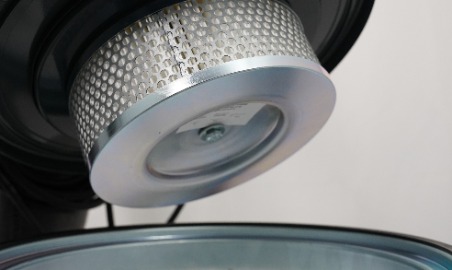

INDIVIDUALLY TESTED HEPA FILTERS AS ESSENTIAL ELEMENT FOR SAFETY

High-efficiency particle air filters are individually tested to grant 99.995% of efficiency as secondary level of filtration with 100% quality control and traceability by serial number.

ACCESSORIES AND TOOLS

All ATEX Delfin accessories, tools and non-metallic parts are compliant with the new standard EN17348 granting surface and transversal resistances below 10^8 Ω according EN 17348.

REDUCTION OF NOISE AT DESIGN STAGE

The vacuum cleaners are designed and constructed in such a way that risks resulting from the emission of
airborne noise are reduced to the lowest level possible according to the state of the art and taking into account
the information and technical measures given in EN ISO 11688-1:2009.

VIBRATION HAZARDS

Vacuum cleaners are designed and constructed in such a way to reduce operator exposure to hand transmitted
vibration to the lowest level according to the state of the art and taking into account the possible measures
to reduce this risk at the source, measuring the hand-transmitted vibration total value according EN ISO
20643:2008 at the maximum rated power.

Download our brochure
